Family of modular, reconfigurable optical communication terminals spanning compact to medium form factors with 26+ space-qualified SKUs and flight-proven heritage.
The SatLight™ OCT is a family of modular, reconfigurable optical communication terminals spanning compact to medium form factors. SatLight 1 delivers 1W transmit power through a 25 mm aperture (114 dBm gain), while SatLight 2 scales to 3.2W through a 127 mm aperture (163 dBm gain) for longer-range LEO-to-GEO links.
With 26+ space-qualified SKUs and flight-proven heritage on JAXA's LEO-to-GEO optical link (3+ years operational, beacon-less acquisition in under 60 seconds), the OCT supports both SDA 2.5G and high-speed 100G/200G configurations using separate Tx/Rx beam paths.

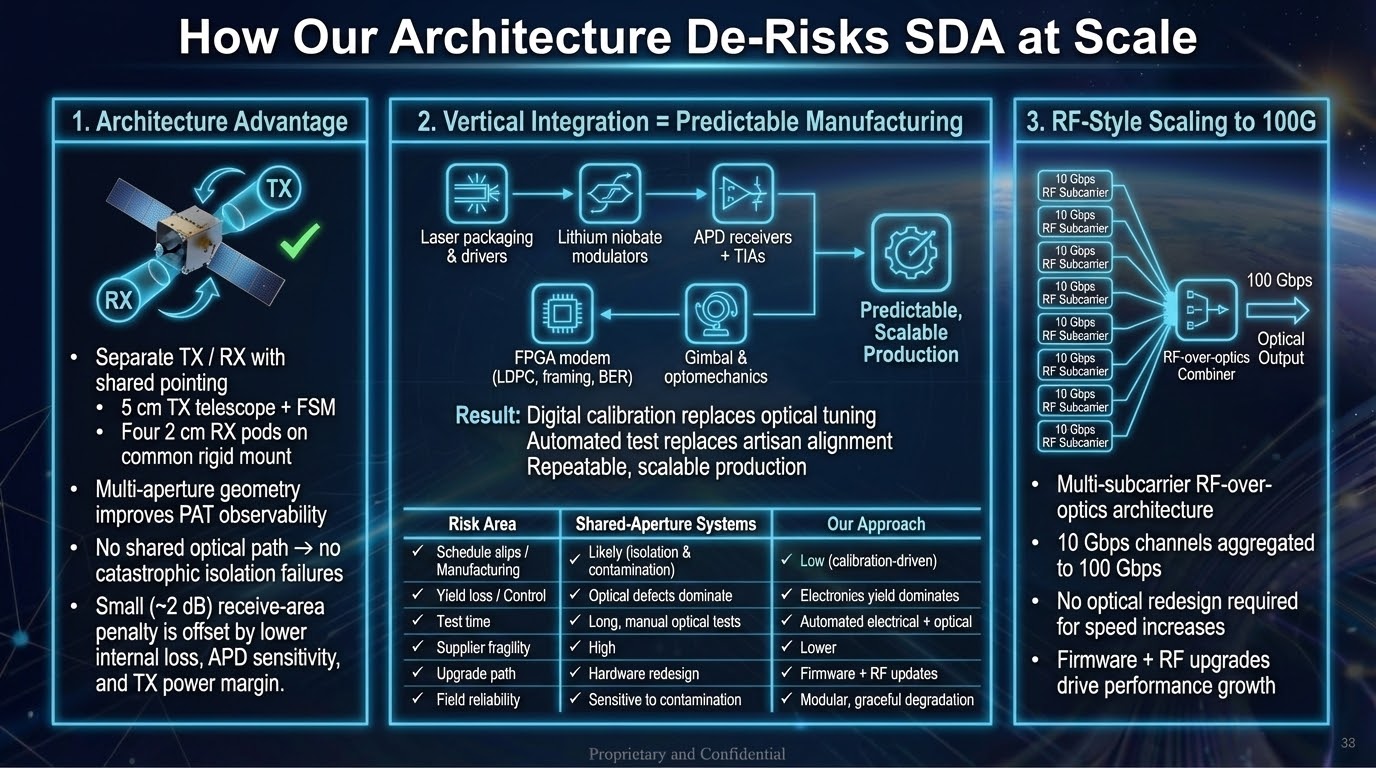

Architecture De-Risks SDA at Scale

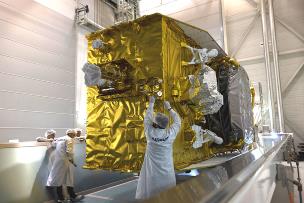

JAXA LUCAS — Space High Energy Laser Communication Satellite (Airbus TELEO)
JAXA LUCAS — Optical Communication Terminal

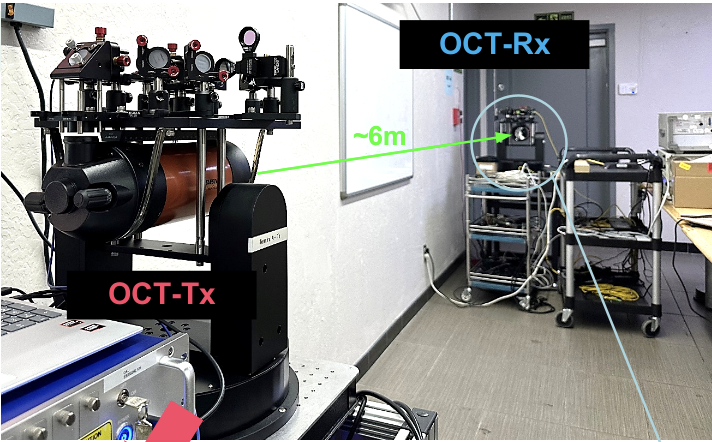

OCT Free-Space Link — Tx/Rx Terminal Test at ~6m

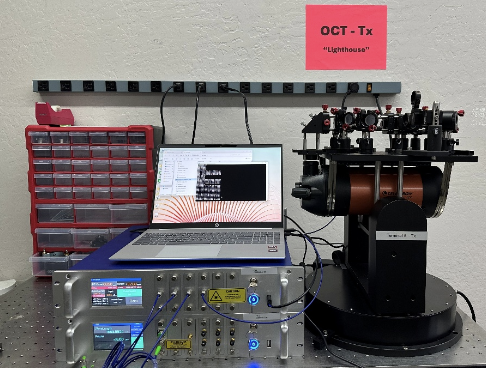

OCT-Tx “Lighthouse” — Transmitter Terminal
OCT-Rx “Harbor” — Receiver Terminal

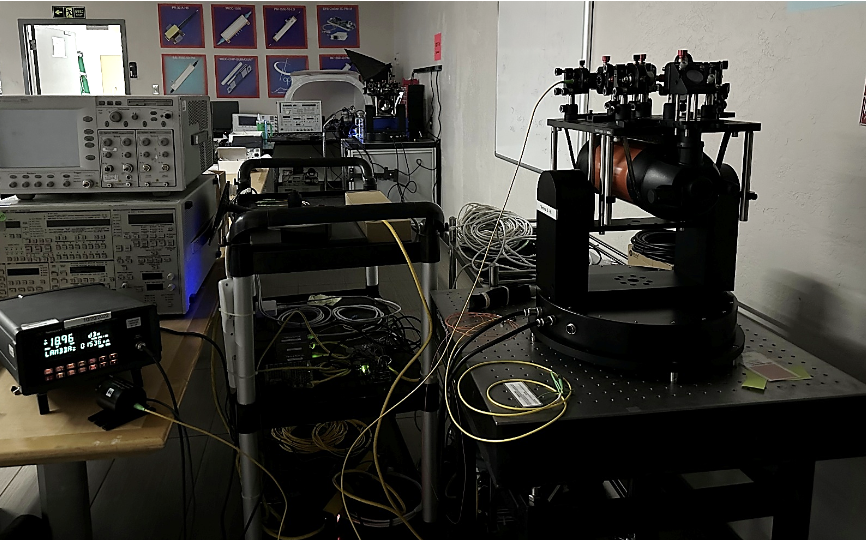

OCT Terminal Lab — Full Test Setup

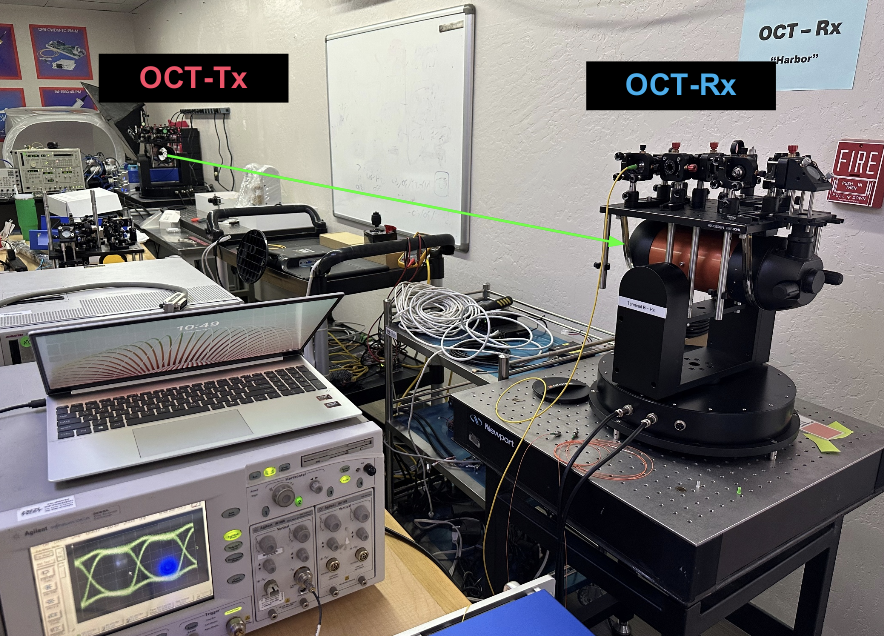

OCT Tx/Rx — Free-Space Optical Link Test

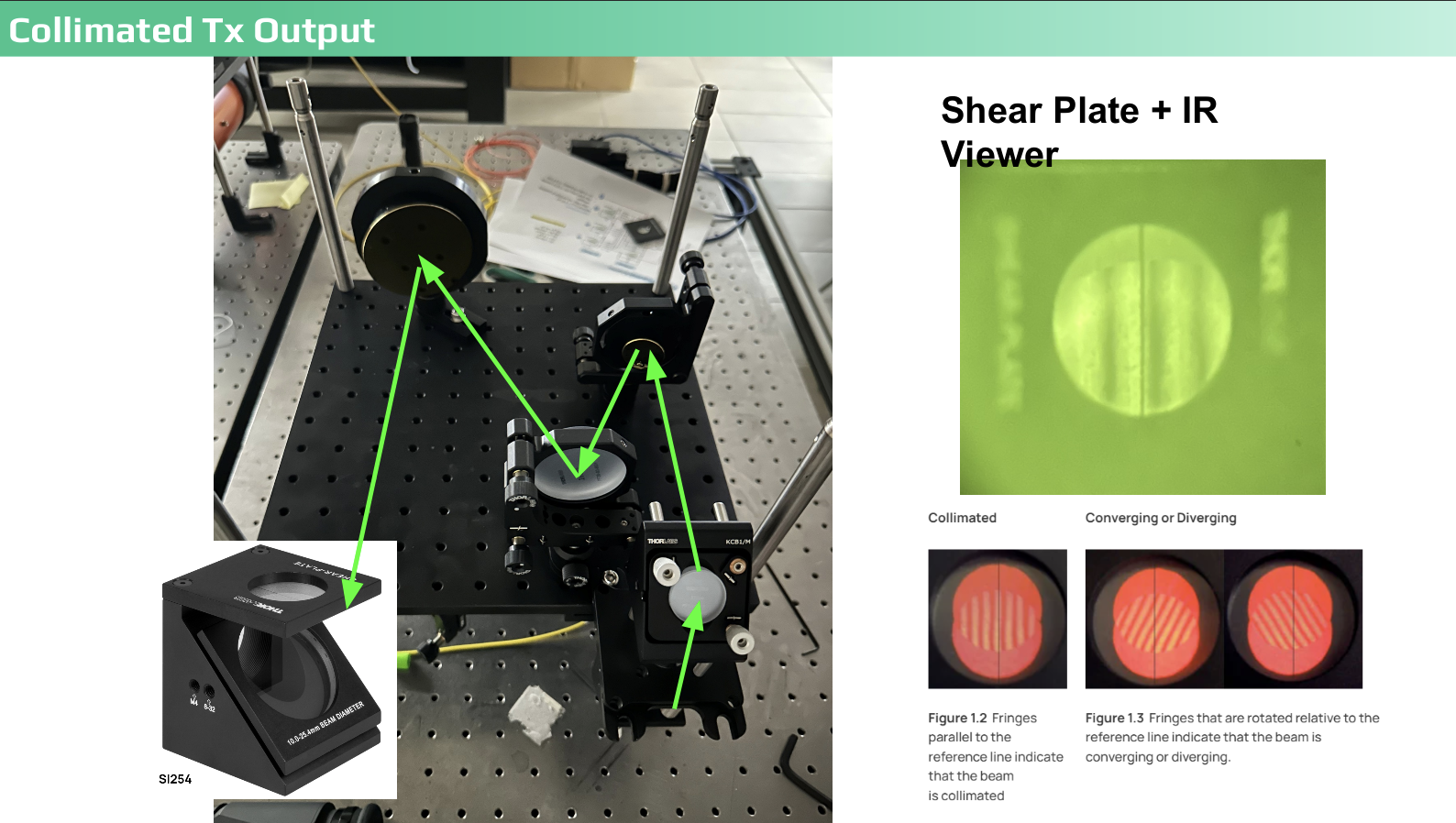

Collimated Tx Output — Shear Plate + IR Viewer Fringe Analysis

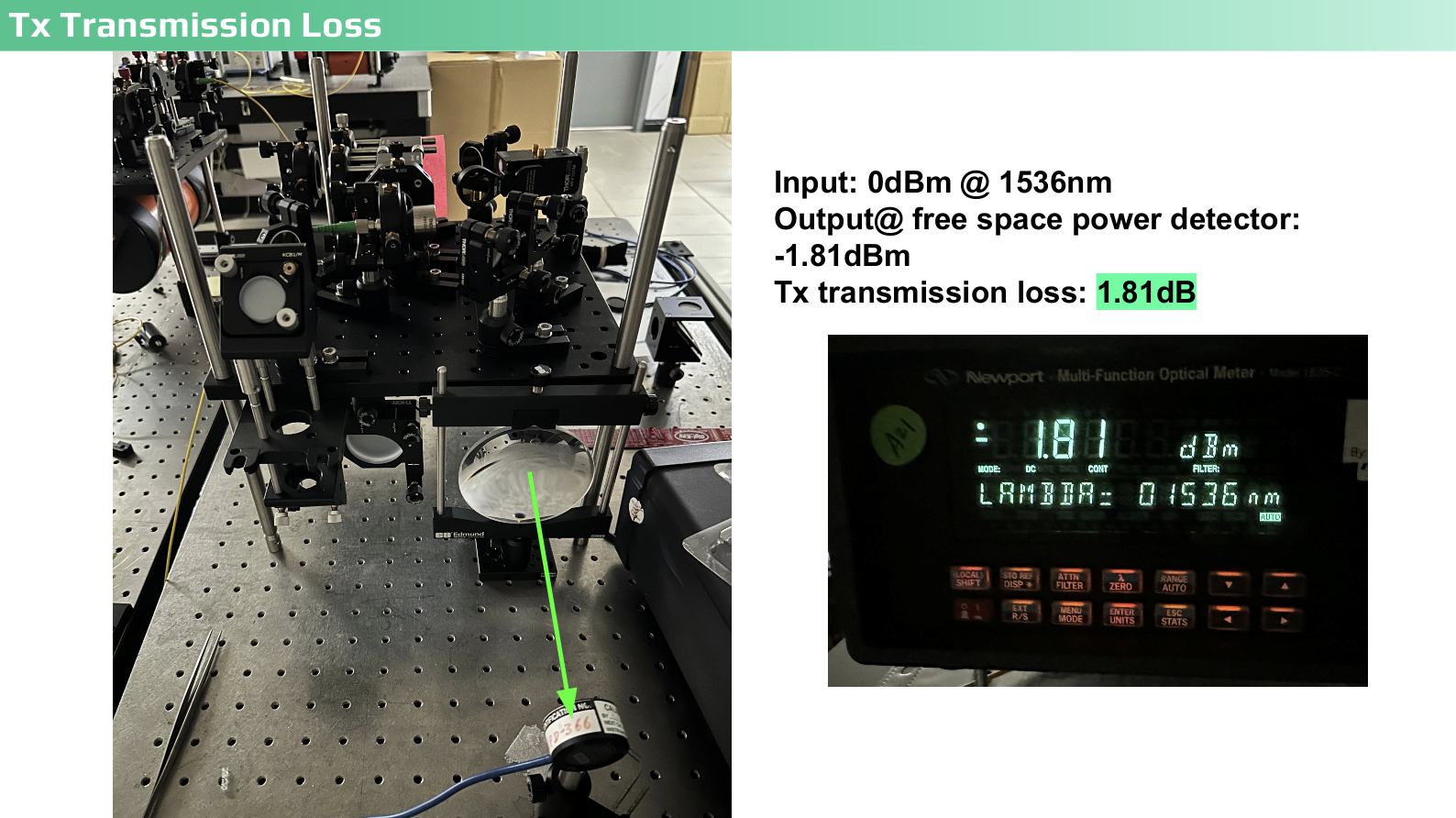

Tx Transmission Loss — 1.81 dB @ 1536 nm

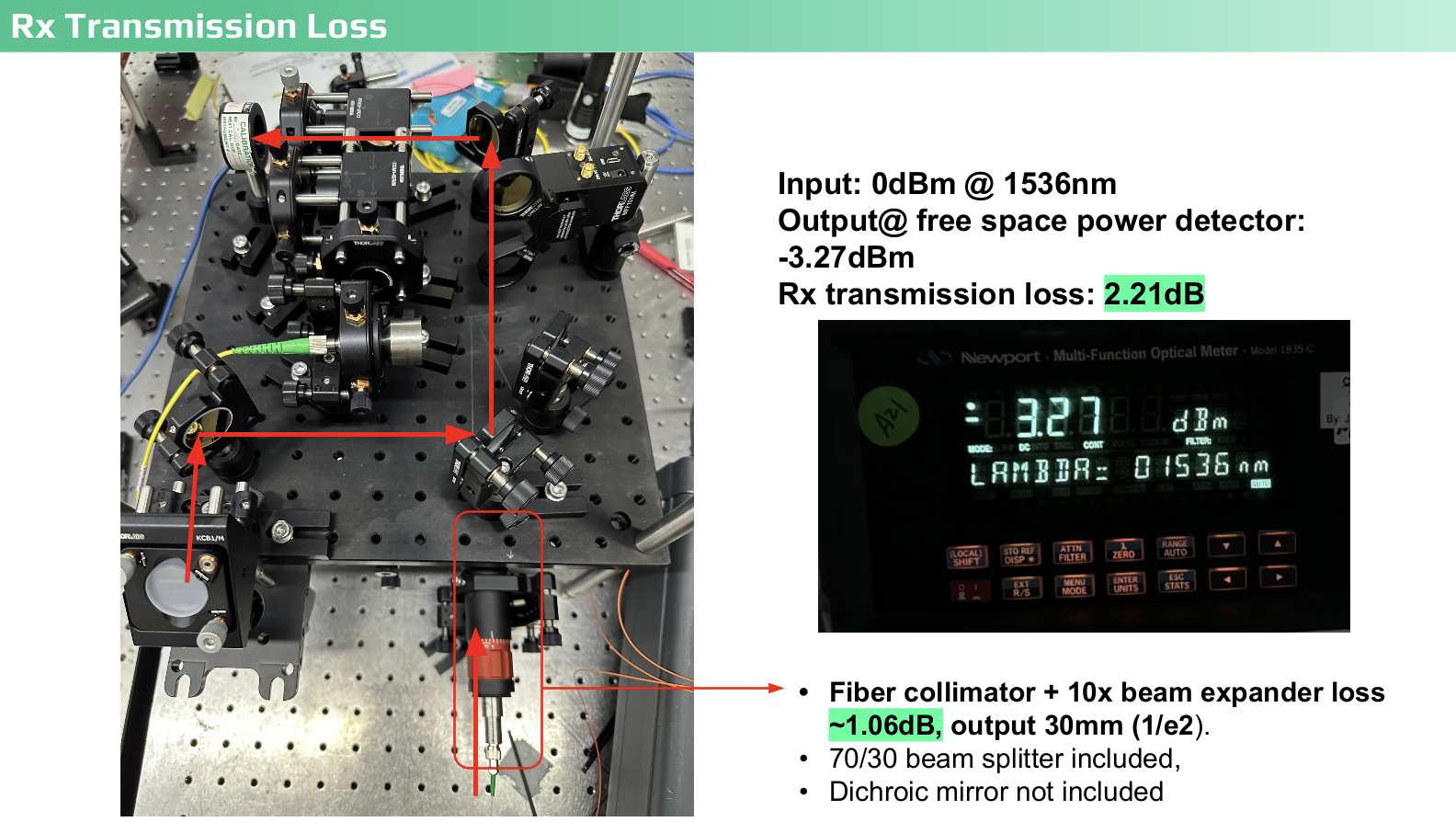

Rx Transmission Loss — 2.21 dB @ 1536 nm (10× Beam Expander)

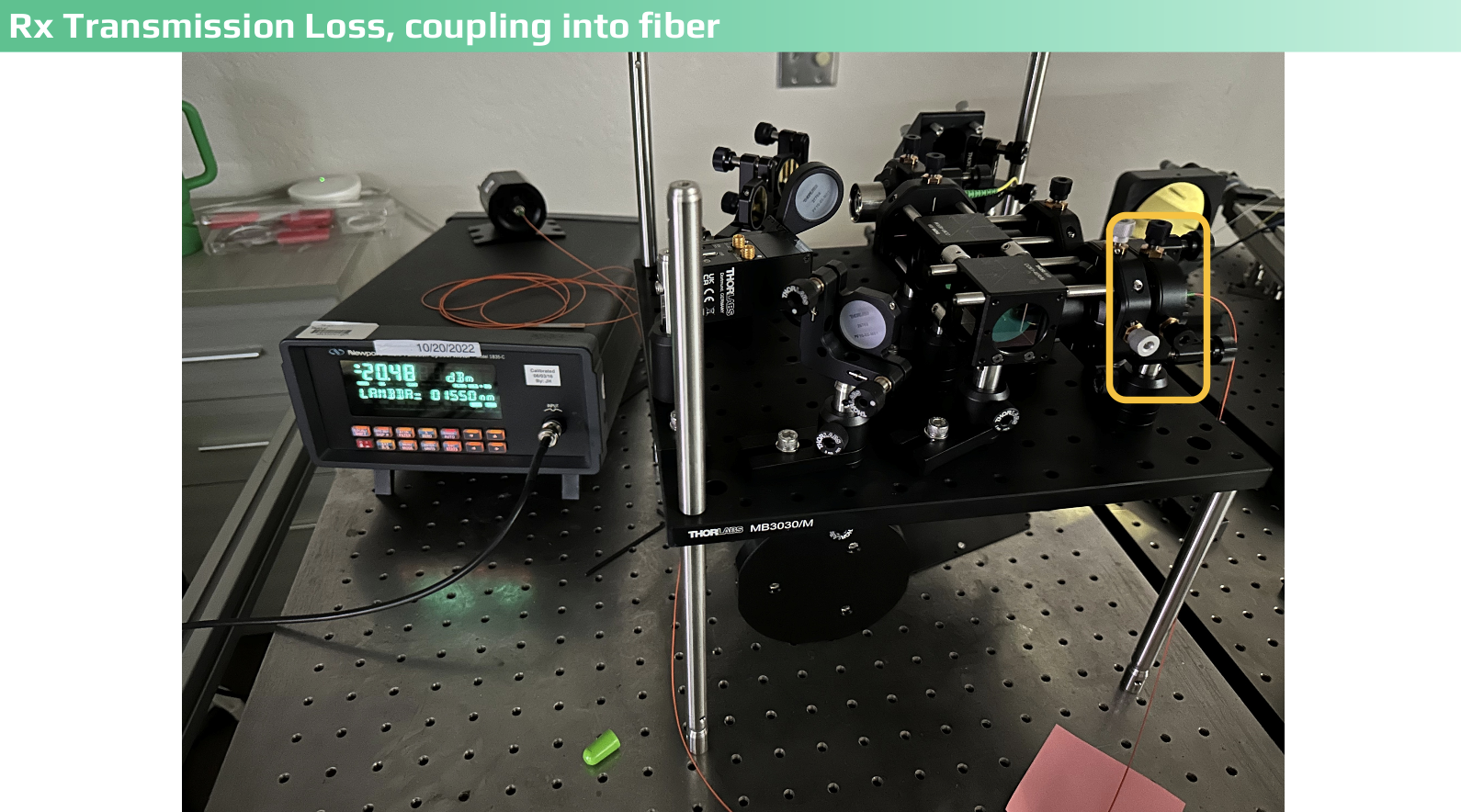

Rx Fiber Coupling Loss — −20.48 dBm @ 1550 nm

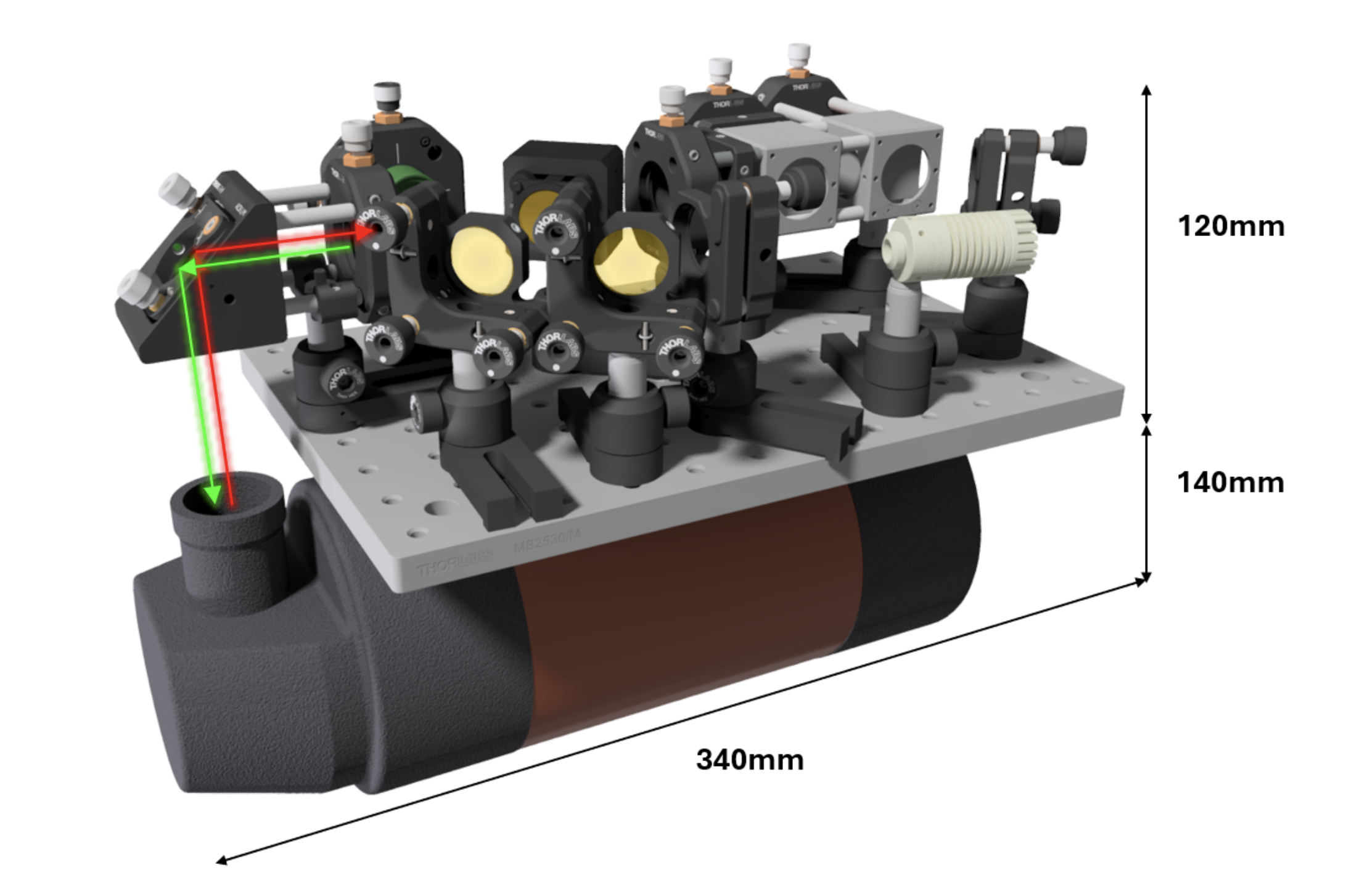

OCT OFE + Telescope Assembly — 340 × 140 × 120 mm

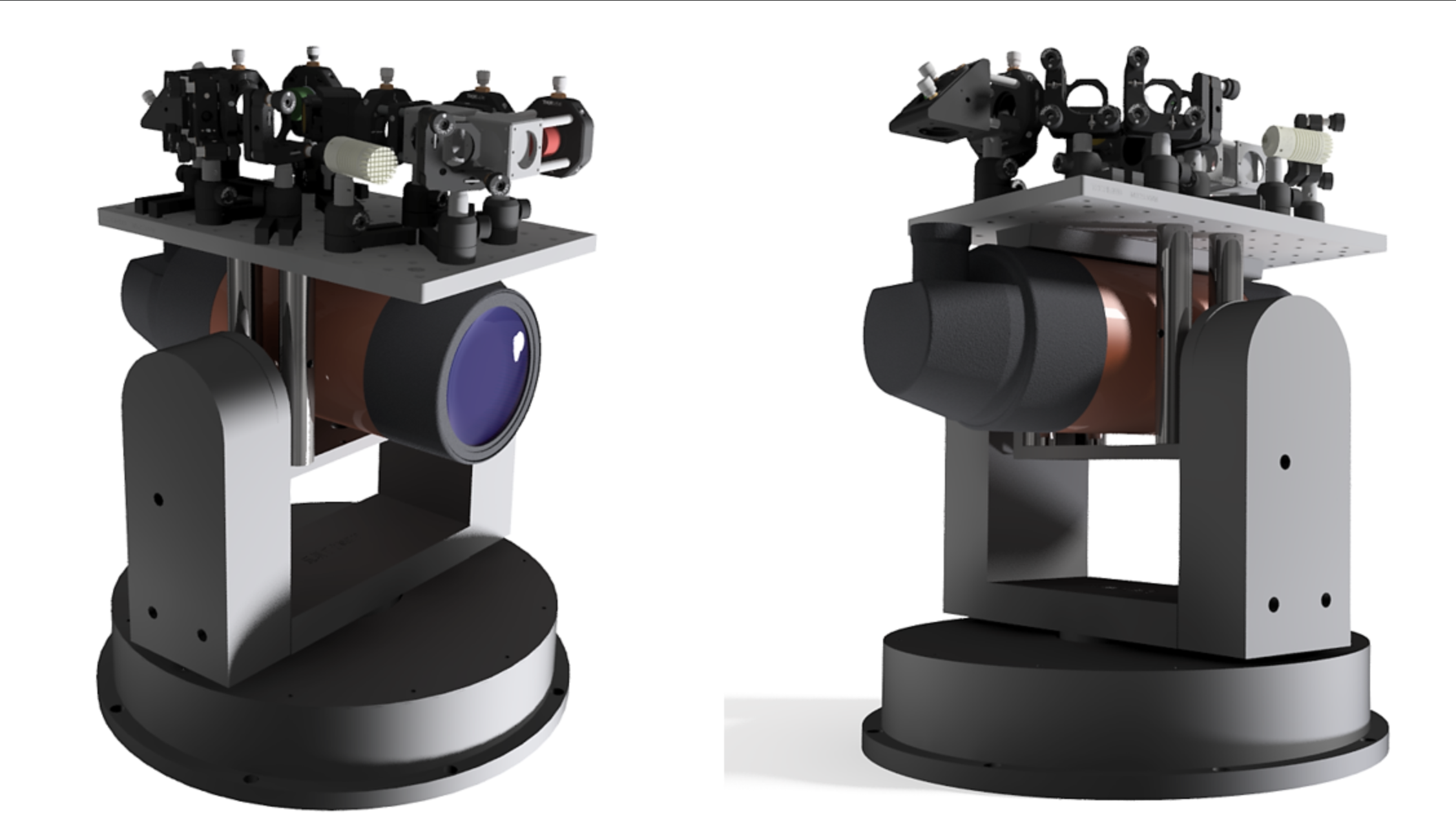

OCT Terminal on Gimbal — Front Aperture & Rear View

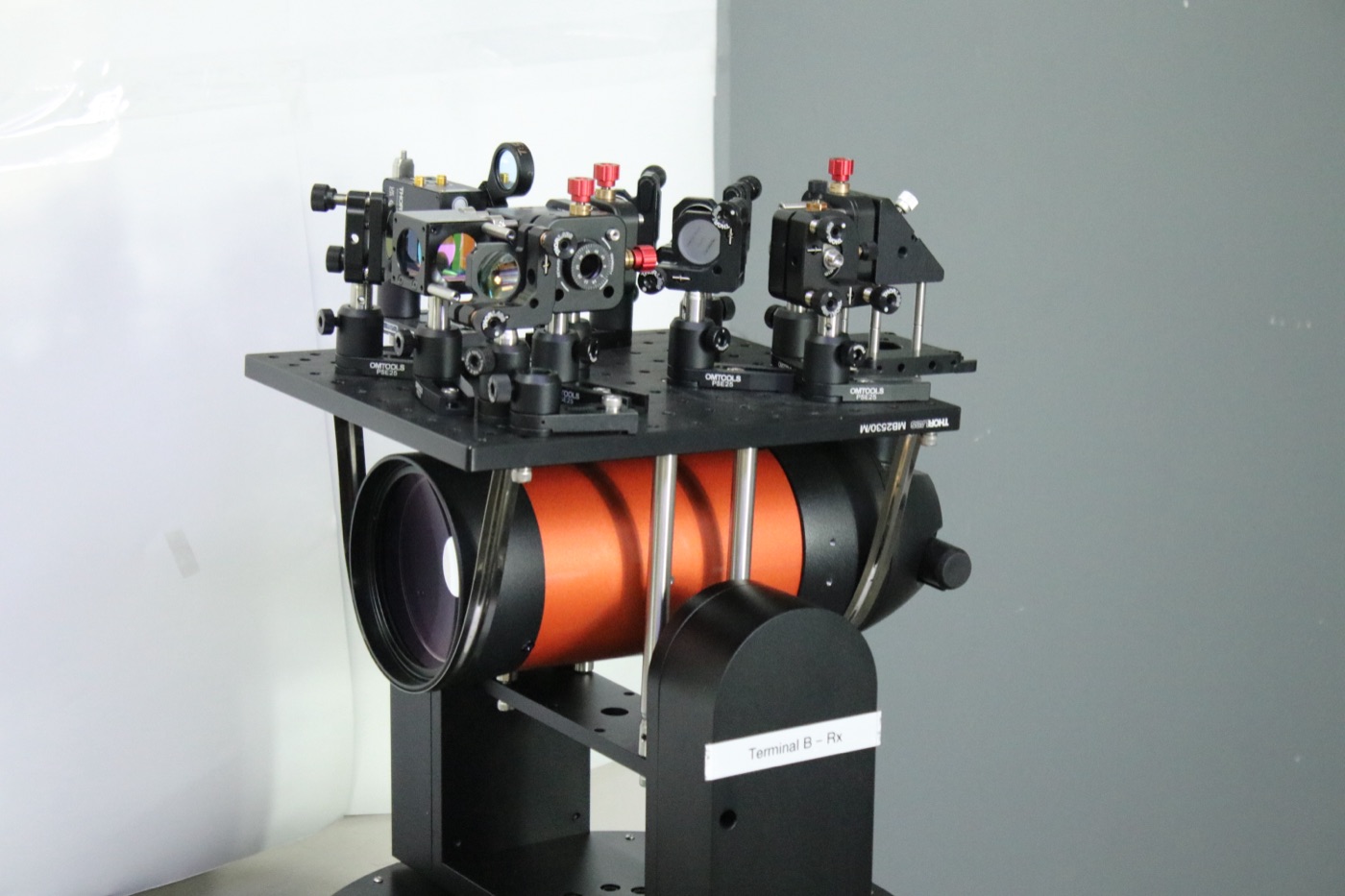

Terminal B — Rx — Front View, OFE + Celestron Telescope

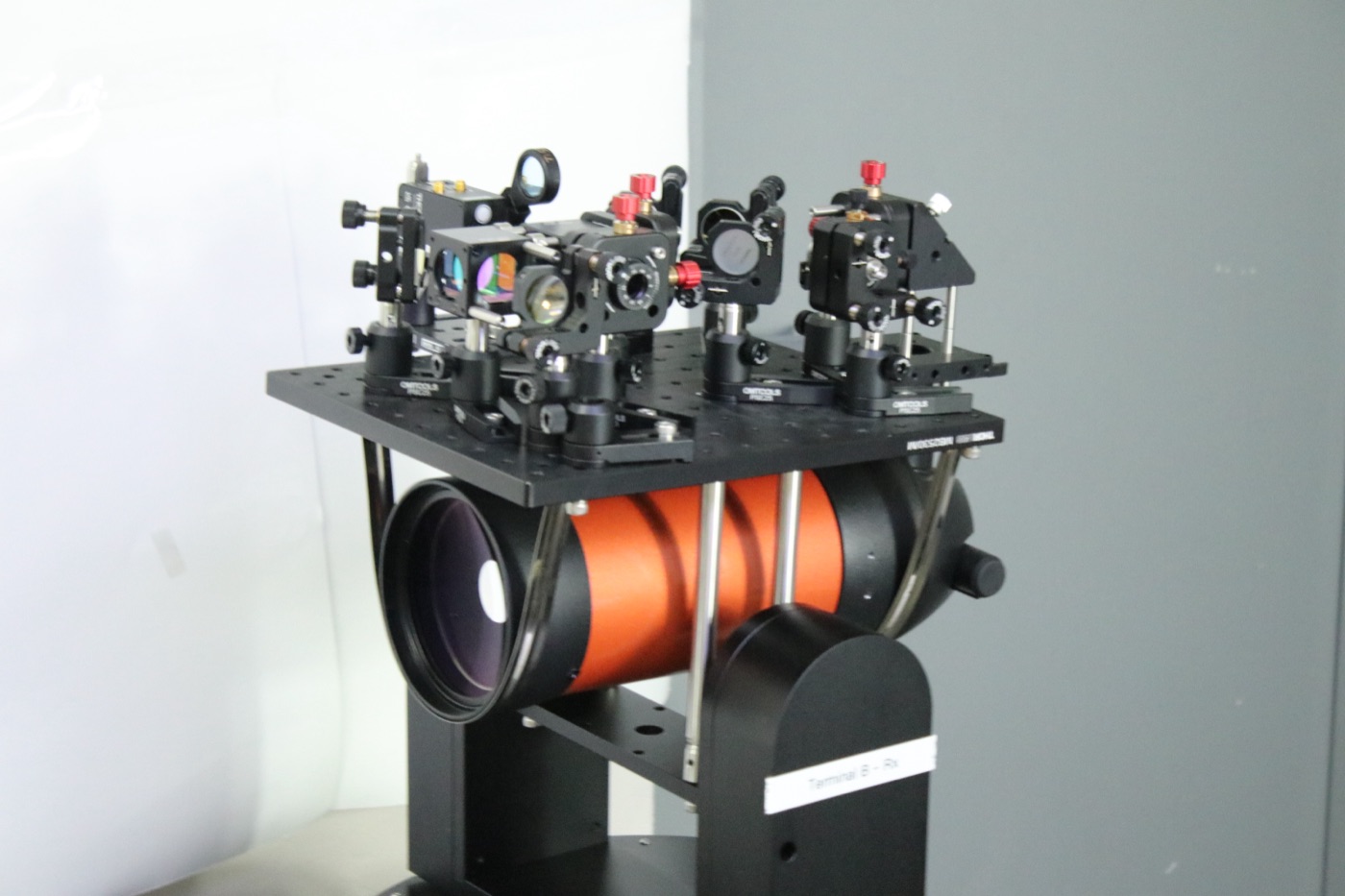

Terminal B — Rx — Alternate Angle, Optical Chain Visible

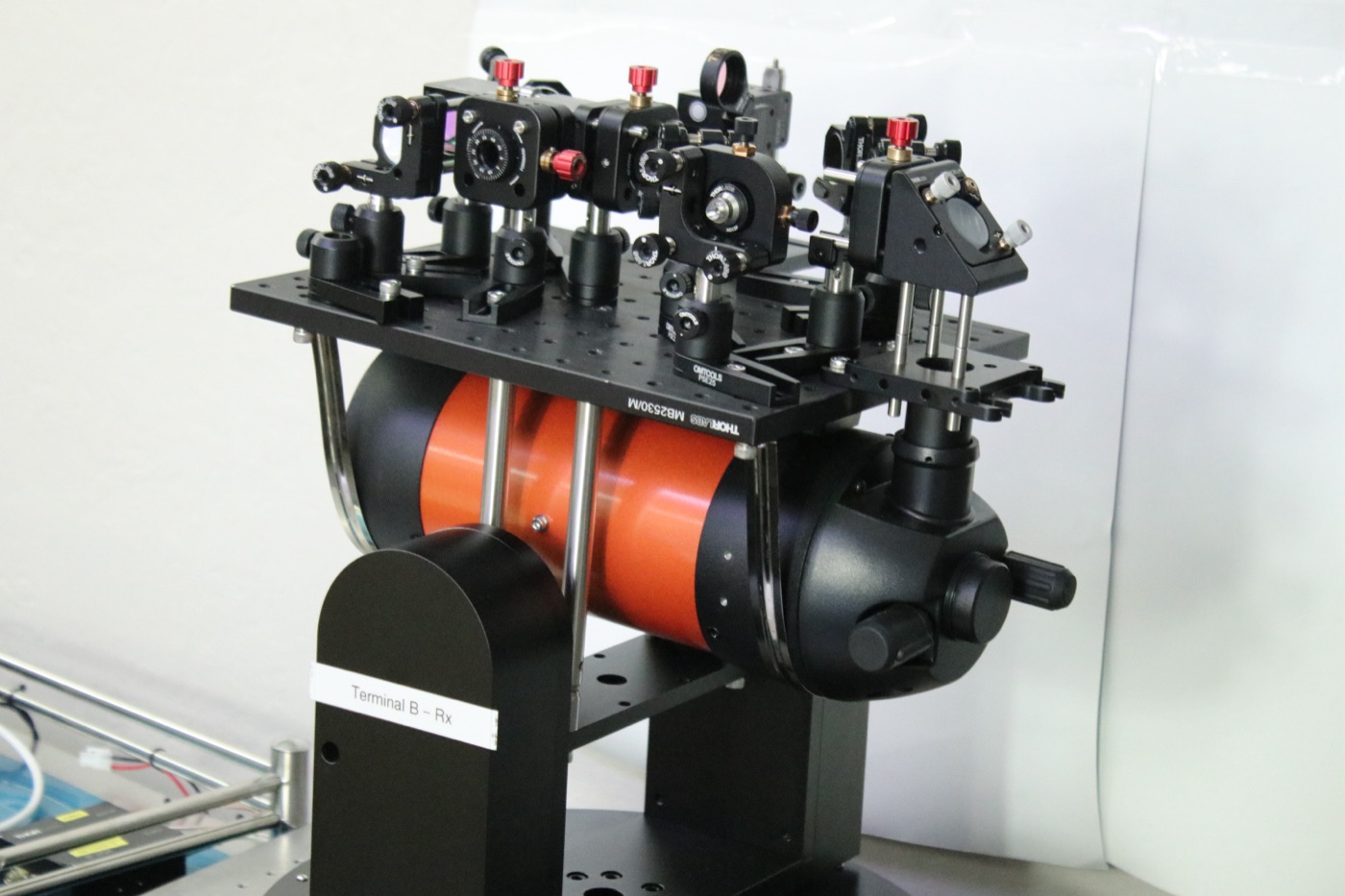

Terminal B — Rx — 3/4 Rear View

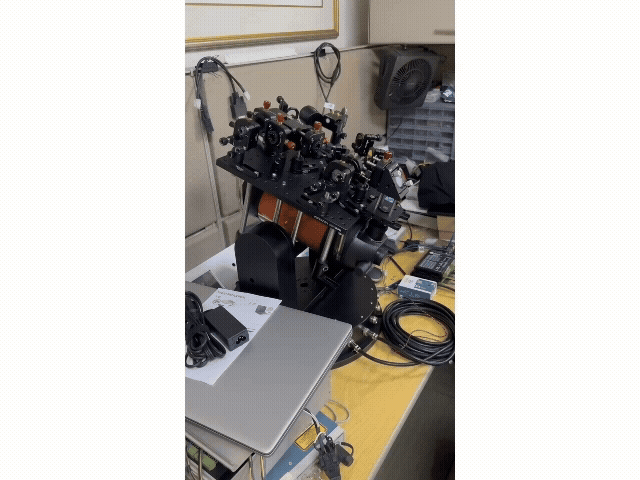

OCT Gimbal — Pointing Demonstration

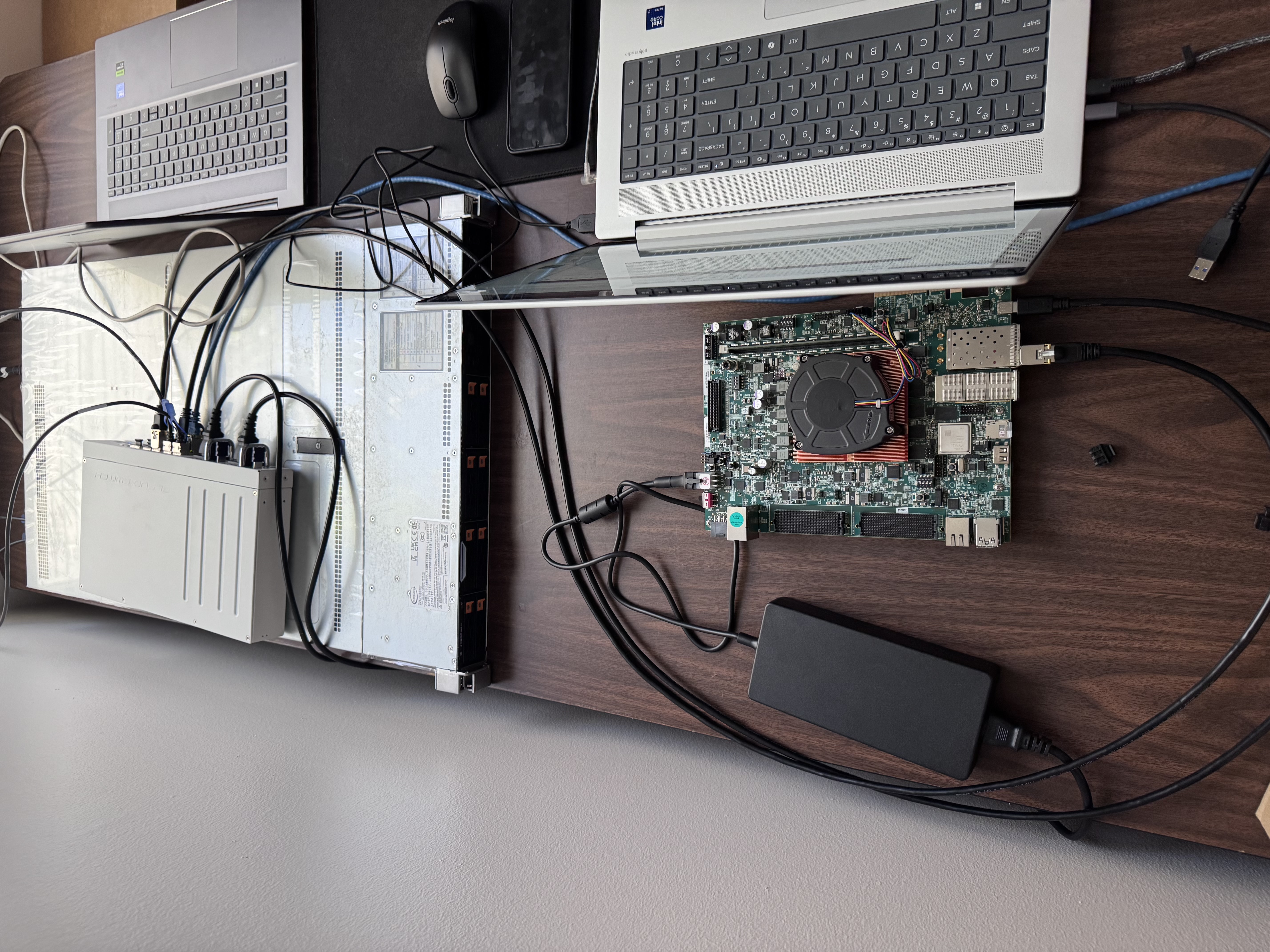

OCT Electronics — FPGA/SBC Board & Rack Test Setup

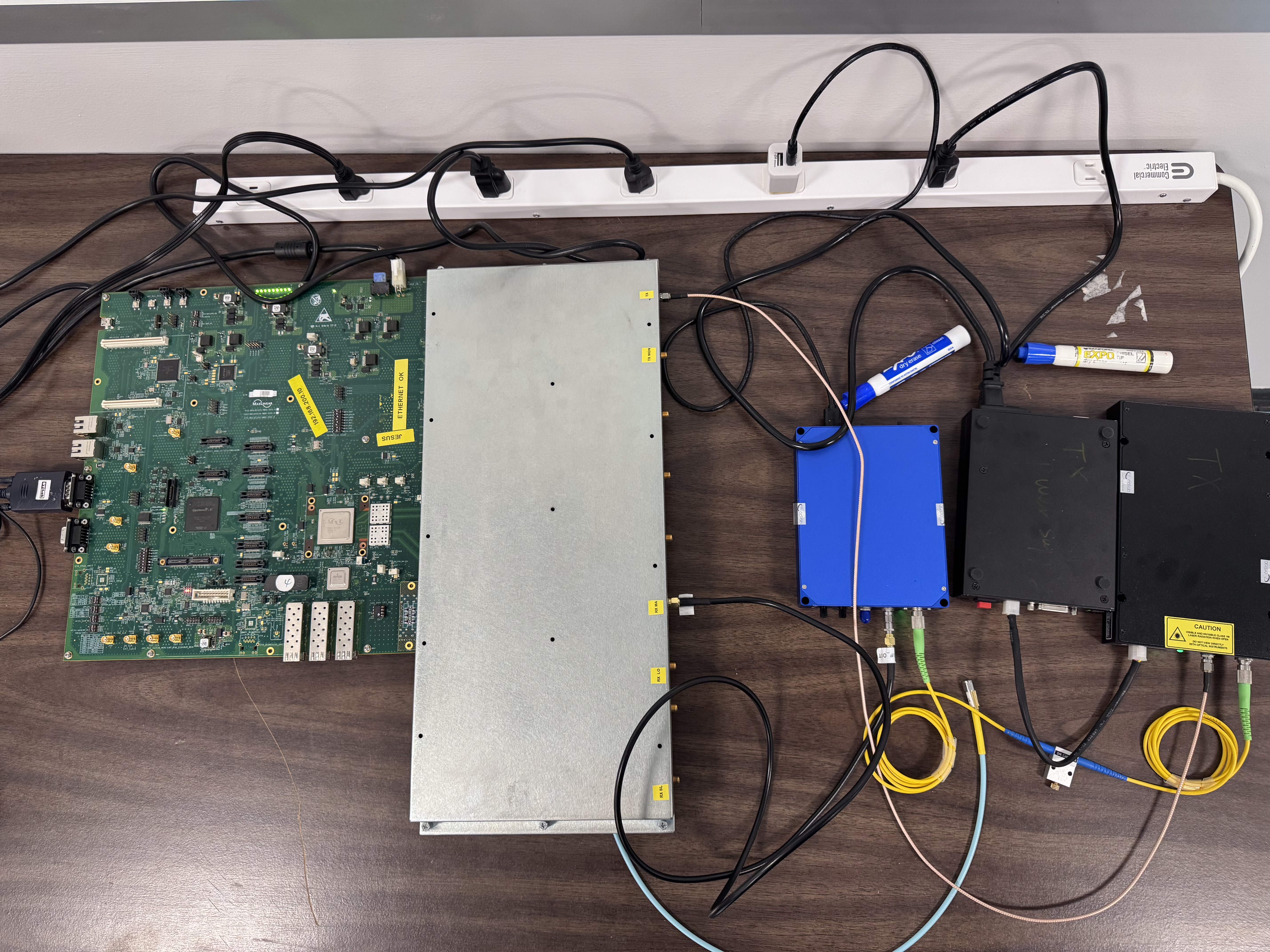

OCT Assembly — PCB, Chassis & Optical Module
OCT Demo — System Test 1
OCT Demo — System Test 2
From compact 25 mm terminals to medium-aperture systems with 3+ years on-orbit heritage, SatLight™ OCT delivers space-qualified optical communication at SDA-interoperable performance.
